Introduction ¶

This is the source code for the website of Maz Realty, a real estate based in Egypt. The application is based on client/server architecture, where the client is a web browser and mobile device, and the server is a Node.js server. The server is responsible for serving the client with the website’s content and handling the requests from the client.
Live
https://mazrealty.live

Core Features ¶

• User can register and login.
• User can view the properties.
• Users can search for properties with advanced search options.
• User can contact the property owner via WhatsApp, email and phone.
• User can view the property location on Google Maps.
• Users can view the property images in a gallery.
• User can view the property details.
• User can chat with the property owner via MAZ Realty chat.
• The user can book lawyer services to check the property documents.
• The user can upload his property for sale or rent.
• The user receives a welcome email when registering.
• The user receives an email when booking lawyer services.
• User receives email for lawyer services feedback about the property documents.

Installation ¶

 1# Clone the repository
 2git clone https://github.com/Adosh74/mazrealty.live
 3
 4# Change the directory
 5cd mazrealty.live
 6
 7# Install the dependencies
 8npm install
 9
10# Install the client and server dependencies
11npm run build
12
13# Create .env file in the root directory like .env.example file
14
15# Start the whole application
16npm run start
17
18# Now the application is running on http://localhost:<the port in the .env file>

Technologies ¶

• Node.js
• Express.js
• TypeScript
• MongoDB
• Mongoose
• Validator
• Redis (for caching)
• JWT (for authentication)
• multer (for file uploading)
• sharp (for image processing)
• nodemailer (for sending emails)
• Pino (for logging)
• React.js
• Vite
• Axios
• SCSSk
• Flutter
• Dart
• WhatsApp API

APIs ¶

users:

• POST /api/v1/users/ - Create a new user
• GET /api/v1/users/ - Get all users
• GET /api/v1/users/:id - Get a user
• PATCH /api/v1/users/:id - Update a user (only for admin)
• DELETE /api/v1/users/:id - Delete a user (only for admin)
• GET /api/v1/users/me - Get the current user (only for authenticated users)
• PATCH /api/v1/users/updateMe - Update the current user (only for authenticated users)
• PATCH /api/v1/users/updateMyPassword - Update the current user’s password (only for authenticated users)

auth:

• POST /api/v1/auth/signup - Sign up and get a token
• POST /api/v1/auth/login - Log in and get a token
• GET /api/v1/auth/logout - Log out and clear the token from the cookie

properties:

• POST /api/v1/properties/ - Create a new property

• GET /api/v1/properties/ - Get all properties

• GET /api/v1/properties/:id - Get a property

• PATCH /api/v1/properties/:id - Update a property (only for admin and property owner)

• DELETE /api/v1/properties/:id - Delete a property

• PATCH api/v1/properties/add-images/:id - Add images to a property (only for admin and property owner)

• PATCH /api/v1/properties/delete-image/:id - Delete an image from a property (only for admin and property owner)

• get all properties query options:

  • GET /api/v1/properties/?sort=-price - Sort by price descending
  • GET /api/v1/properties/?fields=name,price - Select only name and price fields
  • GET /api/v1/properties/?limit=5 - Limit the number of results to 5
  • GET /api/v1/properties/?page=2&limit=5 - Pagination, get the second page with 5 results

user favorites:

• POST /api/v1/users/favorites/:id - Add a property to favorites (only for authenticated users)
• DELETE /api/v1/users/favorites/:id - Remove a property from favorites (only for authenticated users)
• GET /api/v1/users/favorites - Get all favorite properties of the current user (only for authenticated users)

lawyer:

• GET /api/v1/lawyers/not-approved - Get all lawyers that are not approved (only for lawyer and admin)
• PATCH api/v1/lawyers/approve-property/:id - Approve a lawyer (only for lawyer and admin)

cities:

• GET /api/v1/cities/ - Get all cities

socket events:

newUser - when is connected and authenticated (pass the userId)

sendMessage - when a user sends a message (
pass the object having {
receiverId: receiverId from response,
data: all response
}

)

Documentation ¶

Class Diagram ¶

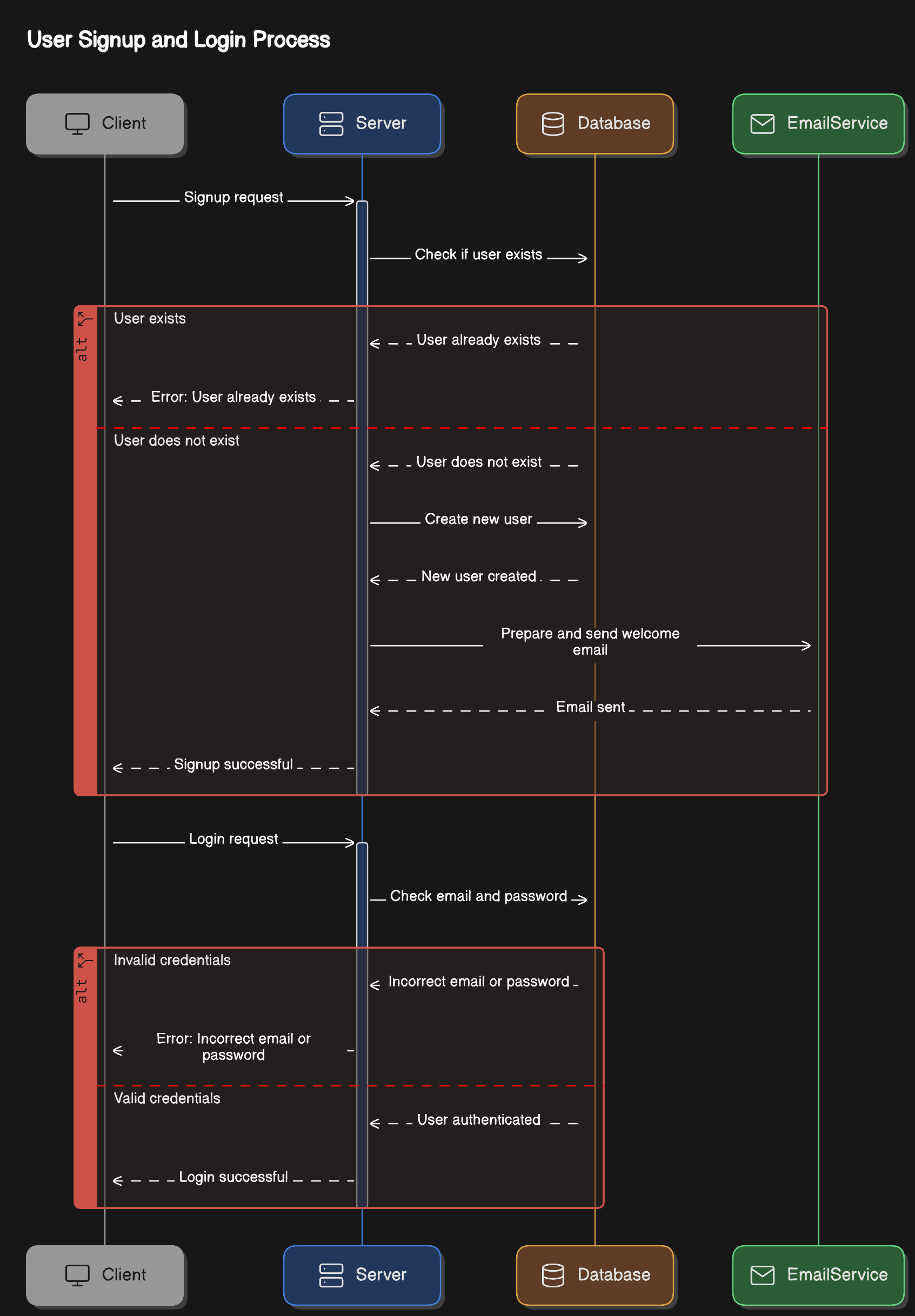

Authentication Process ¶

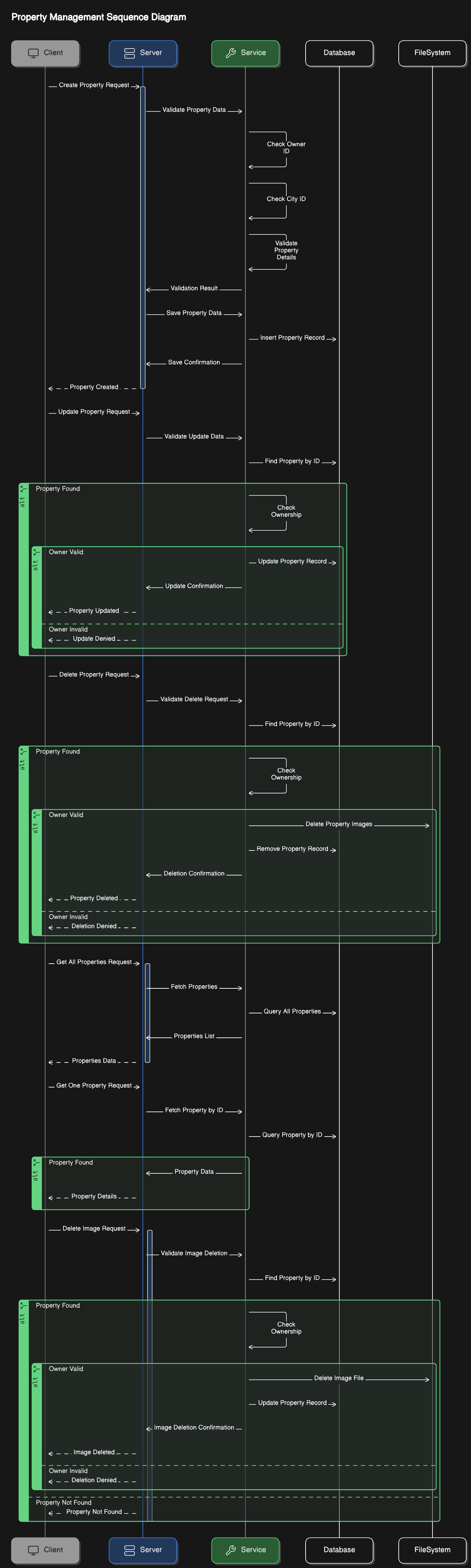

Property Management Process ¶

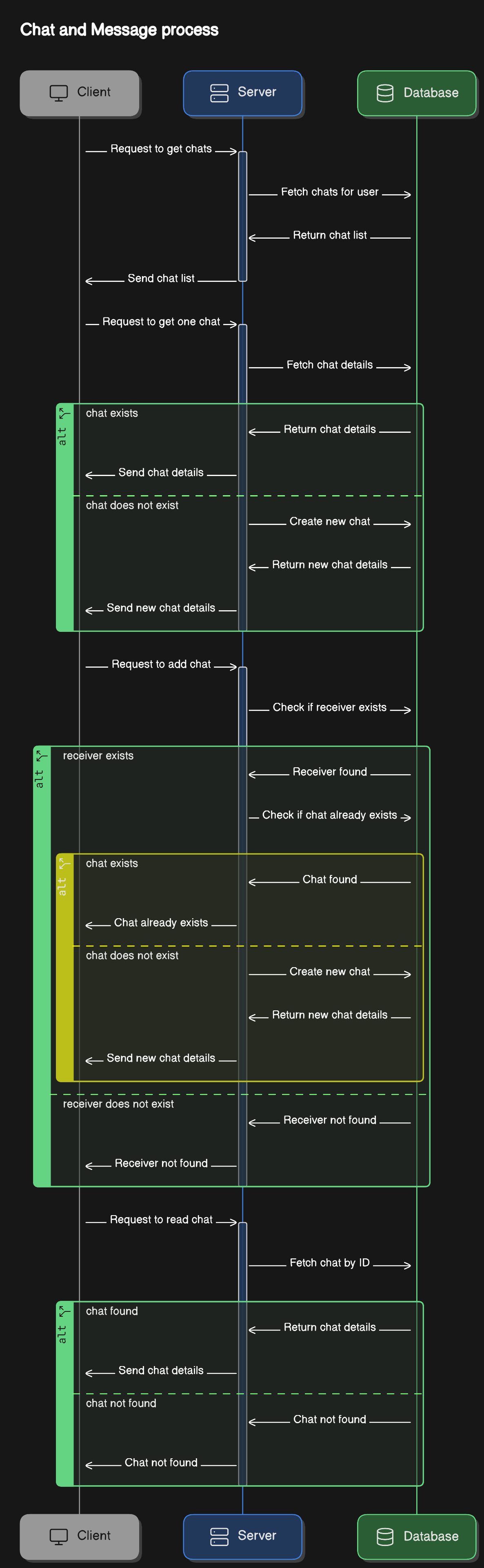

Chat Process ¶

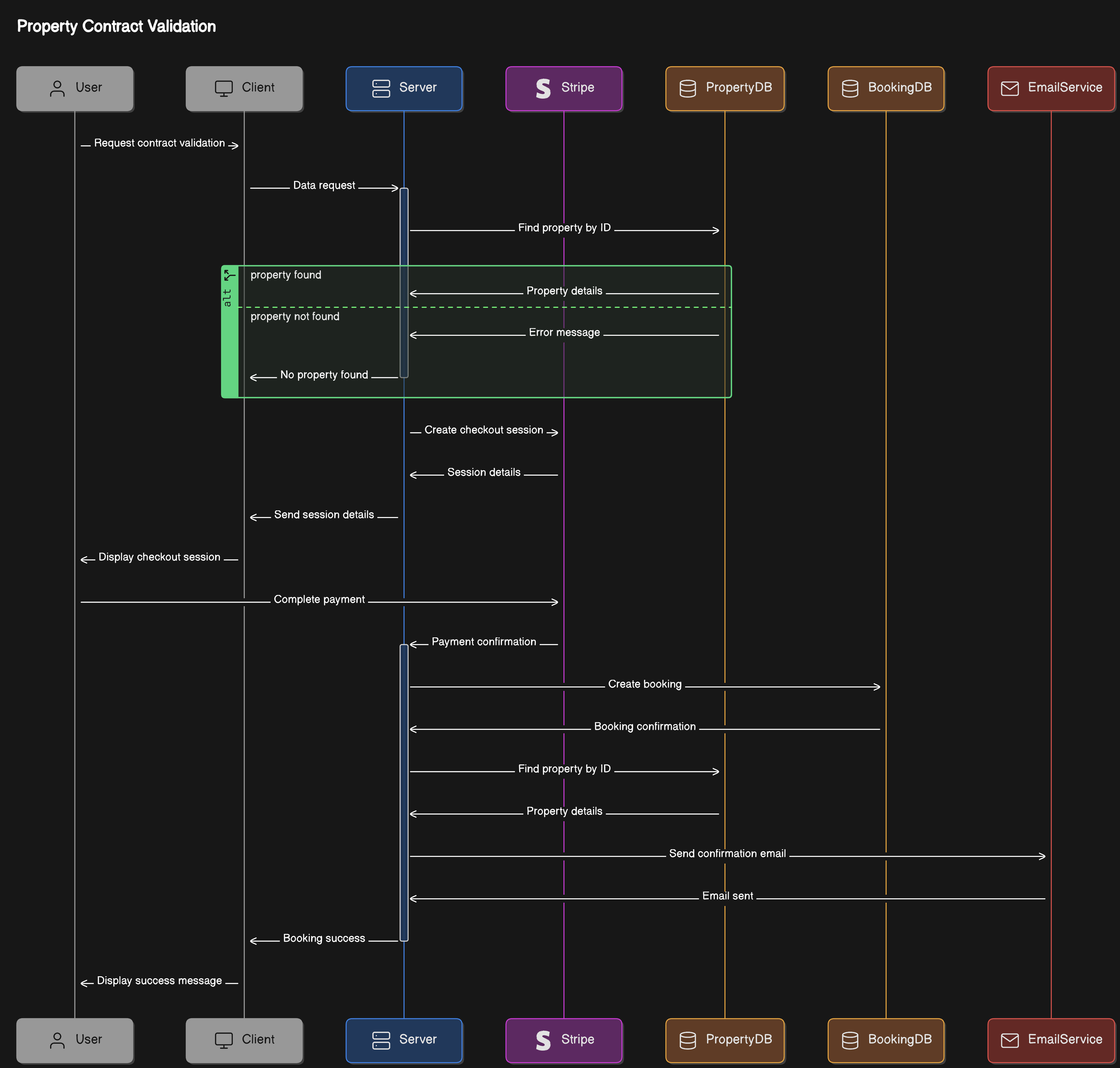

Contract Validation Process ¶

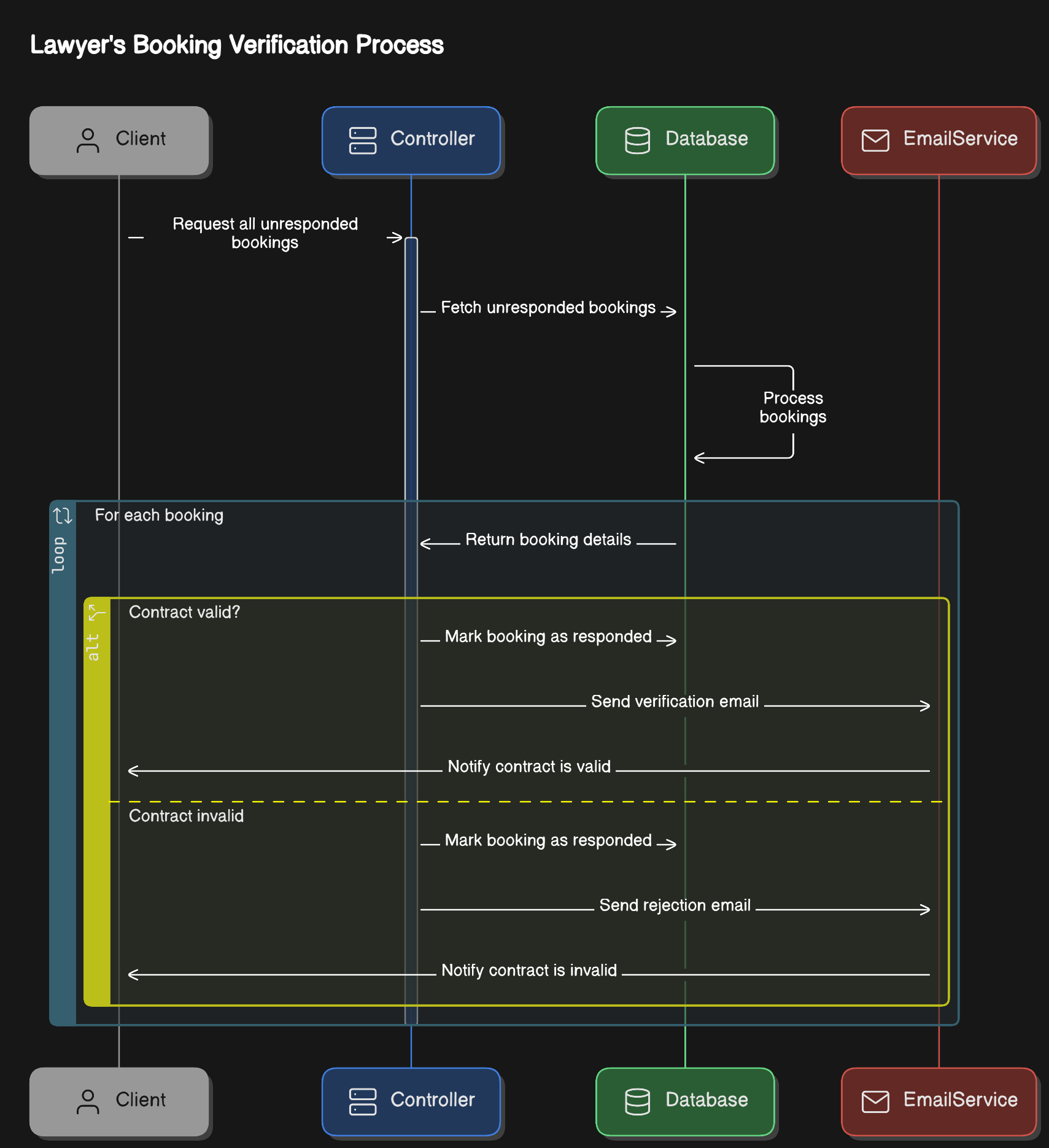

Lawyer Services Process ¶
